Associated Spring Raymond

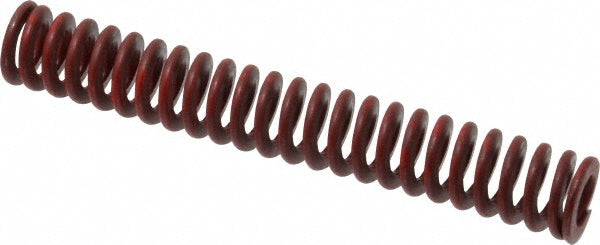

Die Spring - Associated Spring Raymond 104-420
MFR# 104-420
$11.11List $13.94
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 104-420 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorRed
Duty ratingMedium Heavy-Duty
Free length in5
Hole diameter in3/4
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection1.8500
Maximum deflection load lb166.50
Rod diameter in3/8
Spring rate90.00
StandardsANAB Accredited
Wire shapeTrapezoidal
