Associated Spring Raymond

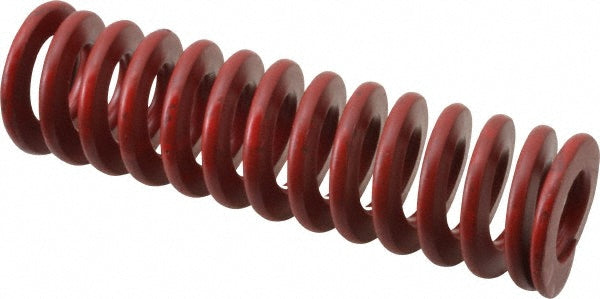

Die Spring - Associated Spring Raymond 104-514
MFR# 104-514
$13.46List $16.89
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 104-514 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorRed
Duty ratingMedium Heavy-Duty
Free length in3-1/2
Hole diameter in1
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection1.3000
Maximum deflection load lb279.70
Rod diameter in1/2
Spring rate229.00
StandardsANAB Accredited
Wire shapeTrapezoidal
