Associated Spring Raymond

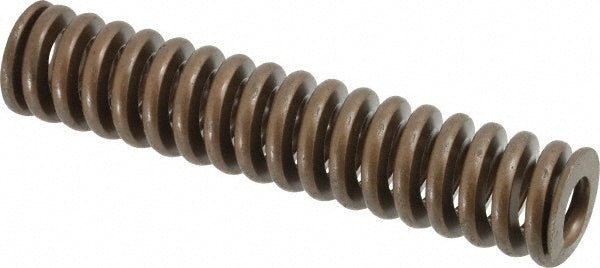

Die Spring - Associated Spring Raymond 105-624
MFR# 105-624
$34.44List $43.23
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 105-624 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorGold
Duty ratingHeavy-Duty
Free length in6
Hole diameter in1-1/4
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection1.8000
Maximum deflection load lb763.20
Rod diameter in5/8
Spring rate450.00
StandardsANAB Accredited
Wire shapeTrapezoidal
