Associated Spring Raymond

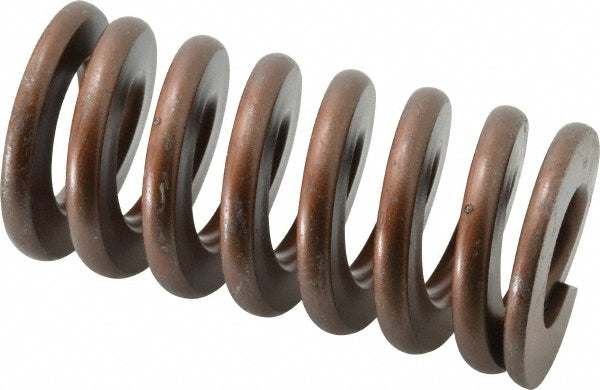

Die Spring - Associated Spring Raymond 105-816
MFR# 105-816
$50.92List $63.91
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 105-816 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorGold
Duty ratingHeavy-Duty
Free length in4
Hole diameter in2
Iso 90012008 Certified
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection1.2000
Maximum deflection load lb1800.00
Rod diameter in1
Spring rate1500.00
StandardsANAB Accredited
Wire shapeTrapezoidal
