Associated Spring Raymond

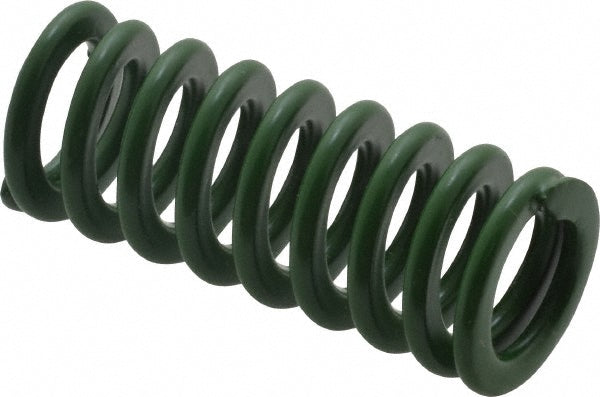

Die Spring - Associated Spring Raymond 203-306
MFR# 203-306
$2.37List $2.98
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 203-306 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorGreen
Free length in1-1/2
Iso 90012008 Certified
Iso number10243
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection load n301.10
Maximum deflection (mm)15.60
Rod diameter (mm)8.00
Spring rate110.21
StandardsANAB Accredited
Travel to solid load (mm)15.60
Wire shapeTrapezoidal
