Associated Spring Raymond

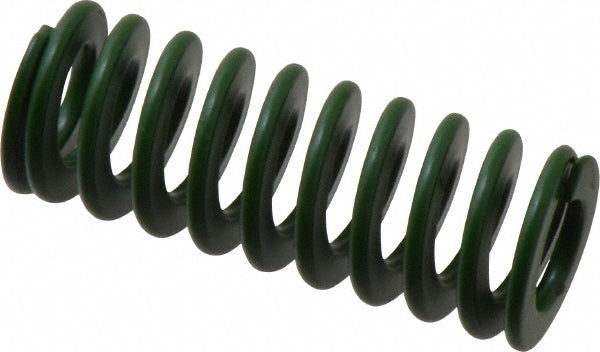

Die Spring - Associated Spring Raymond 203-408
MFR# 203-408
$3.92List $4.92
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 203-408 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorGreen
Free length in2
Iso 90012008 Certified
Iso number10243
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection load n490.00
Maximum deflection (mm)20.00
Rod diameter (mm)10.00
Spring rate139.90
StandardsANAB Accredited
Travel to solid load (mm)20.00
Wire shapeTrapezoidal
