Associated Spring Raymond

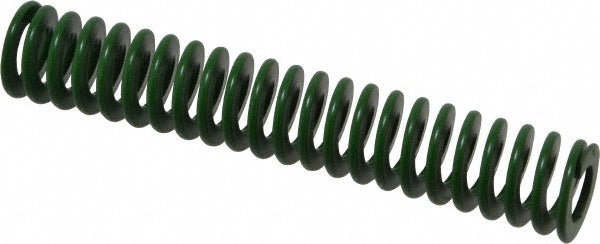

Die Spring - Associated Spring Raymond 203-418
MFR# 203-418
$5.67List $7.12
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 203-418 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorGreen
Free length in4-1/2
Iso 90012008 Certified
Iso number10243
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection load n501.40
Maximum deflection (mm)46.00
Rod diameter (mm)10.00
Spring rate62.24
StandardsANAB Accredited
Travel to solid load (mm)46.00
Wire shapeTrapezoidal
