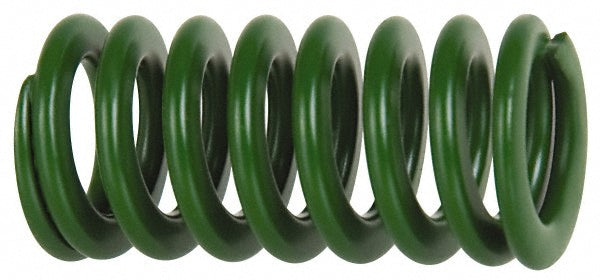

Die Spring - Associated Spring Raymond 203-516
MFR# 203-516
$7.09List $8.89
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 203-516 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorGreen
Free length in4
Iso 90012008 Certified
Iso number10243
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection load n865.10
Maximum deflection (mm)41.00
Rod diameter (mm)12.50
Spring rate120.48
StandardsANAB Accredited
Travel to solid load (mm)41.00
Wire shapeTrapezoidal
