Associated Spring Raymond

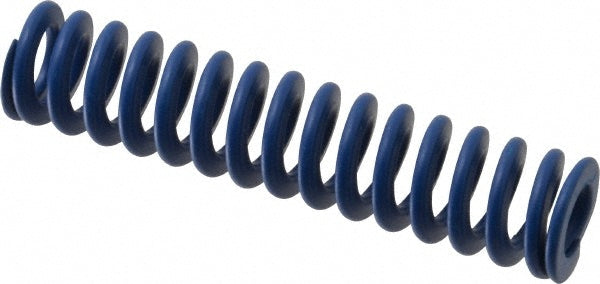

Die Spring - Associated Spring Raymond 204-414
MFR# 204-414
$4.98List $6.26
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 204-414 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorBlue
Free length in3-1/2
Iso 90012008 Certified
Iso number10243
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection load n726.00
Maximum deflection (mm)33.00
Rod diameter (mm)10.00
Spring rate125.62
StandardsANAB Accredited
Travel to solid load (mm)33.00
Wire shapeTrapezoidal
