Associated Spring Raymond

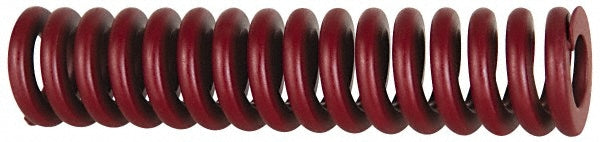

Die Spring - Associated Spring Raymond 205-148
MFR# 205-148
$11.96List $15.01
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 205-148 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorRed
Free length in12
Iso 90012008 Certified
Iso number10243
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection load n192.20
Maximum deflection (mm)91.50
Rod diameter (mm)5.00
Spring rate11.99
StandardsANAB Accredited
Travel to solid load (mm)91.50
Wire shapeTrapezoidal
