Associated Spring Raymond

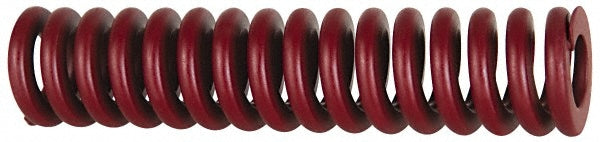

Die Spring - Associated Spring Raymond 205-616
MFR# 205-616
$11.24List $14.11
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 205-616 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorRed
Free length in4
Iso 90012008 Certified
Iso number10243
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection load n3782.00
Maximum deflection (mm)31.00
Rod diameter (mm)16.00
Spring rate696.64
StandardsANAB Accredited
Travel to solid load (mm)31.00
Wire shapeTrapezoidal
