Associated Spring Raymond

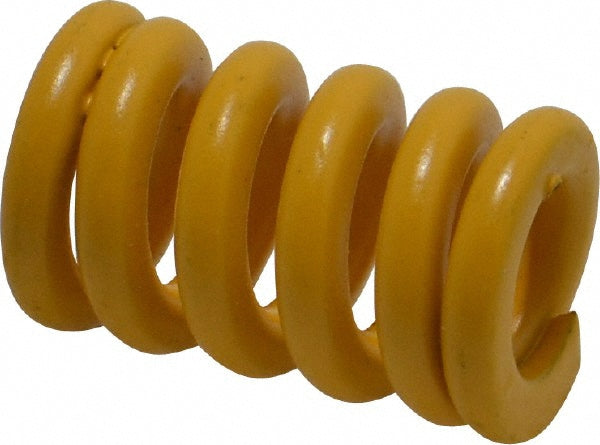

Die Spring - Associated Spring Raymond 206-304
MFR# 206-304
$2.52List $3.17
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Associated Spring Raymond 206-304 is a chromium alloy steel die spring. Meets ANAB Accredited.
Specifications
ColorYellow
Free length in1
Iso 90012008 Certified
Iso number10243
Iso ts 169492009 Certi ed; TUV Rheinland Registered
MaterialChromium Alloy Steel
Maximum deflection load n731.60
Maximum deflection (mm)6.20
Rod diameter (mm)8.00
Spring rate673.80
StandardsANAB Accredited
Travel to solid load (mm)6.20
Wire shapeTrapezoidal
