Associated Spring Raymond
Die Spring - Associated Spring Raymond 304-208-D
MFR# 304-208-D
$6.05List $7.59
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

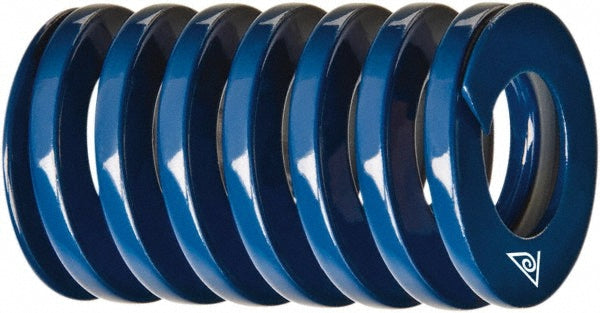

The Associated Spring Raymond 304-208-D is a chromium alloy steel die spring.
Specifications
ColorBlue
Duty ratingMedium-Duty
Free length in2
Hole diameter in1/2
Iso number10243
MaterialChromium Alloy Steel
Maximum deflection1.0630
Maximum deflection load lb83.00
Maximum deflection load n369.20
Rod diameter in9/32
Wire shapeTrapezoidal
