Atlas Workholding

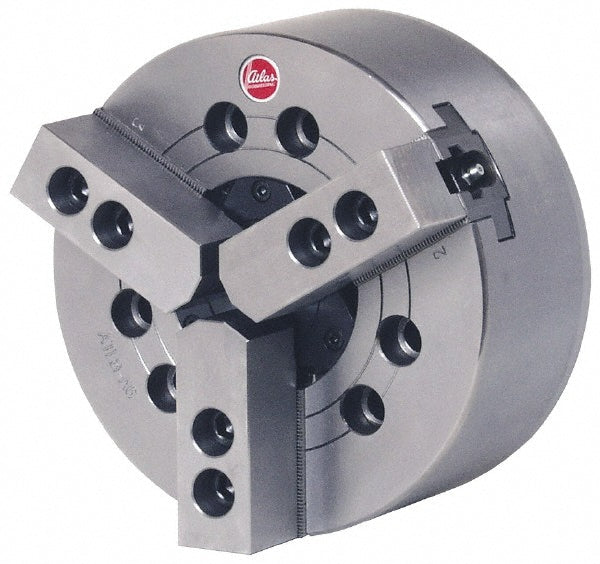

3-Jaw Lathe Chuck - Atlas Workholding ATL10-A6
MFR# ATL10-A6
$2,725.66List $3,421.40
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Atlas Workholding ATL10-A6 is a lathe chuck.
Specifications
Chuck actuation styleDrawbar
Chuck diameter in10
Force per jaw lb24420
Jaw interface typeSerrated
Jaw stroke diameter0.3460
Maximum drawbar pulling force lbf9667.00
Maximum jaw capacity10.0000
Maximum rpm4200
Maximum static gripping force lbf24953.00
Minimum jaw capacity1.2200
Mount typeA2-6
Number of jaws3
Operation typeHydraulic
Piston stroke length0.7480
Through hole diameter2.9520
