Balax

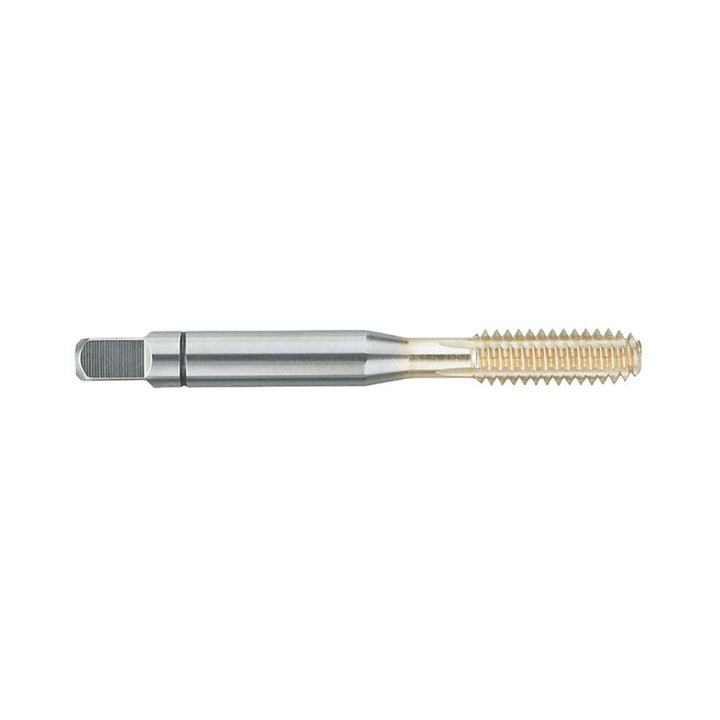

#8-32 UNC Powdered Metal High-Speed Steel Tap, Bal-Plus - Balax 11752-81L
MFR# 11752-81LSeries BXDIECAST
$37.97List $48.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#8-32
CoatingBal-Plus
Description
The Balax 11752-81L is a #8-32 UNC Powdered Metal High-Speed Steel tap with a Bal-Plus finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit2B
Coating finishBal-Plus
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationDie Cast Aluminum
Oil grooves2
Overall length in2-1/8
Shank diameter0.1680
Square size0.1310
Tapping depth0.7500
Thread directionRight Hand
Thread length0.4700
Thread limitH5
Thread size in#8-32
Thread standardUNC
