Balax
#10-24 UNC High-Speed Steel Tap, TiN - Balax 11963-01T
MFR# 11963-01TSeries BXB
$24.71List $31.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-24
CoatingTiN
Description

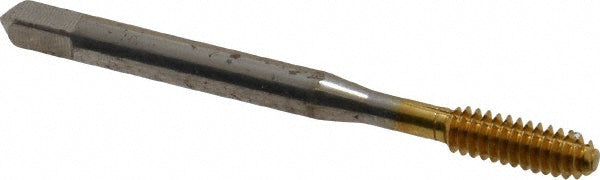

The Balax 11963-01T is a #10-24 UNC High-Speed Steel tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in2-3/8
Shank diameter0.1940
Square size0.1520
Tapping depth0.8750
Thread directionRight Hand
Thread length0.6000
Thread limitH3
Thread size in#10-24
Thread standardUNC
