Balax
#10-24 UNC Powdered Metal High-Speed Steel Tap, Bal-Plus - Balax 12092-91L
MFR# 12092-91LSeries BXDIECAST
$37.97List $48.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-24
CoatingBal-Plus
Description

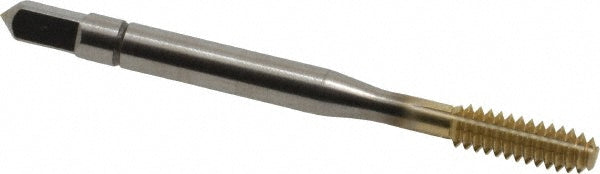

The Balax 12092-91L is a #10-24 UNC Powdered Metal High-Speed Steel tap with a Bal-Plus finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit2B
Coating finishBal-Plus
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationDie Cast Aluminum
Oil grooves1
Overall length in2-3/8
Shank diameter0.1940
Square size0.1520
Tapping depth0.8750
Thread directionRight Hand
Thread length0.6000
Thread limitH5
Thread size in#10-24
Thread standardUNC
