Balax

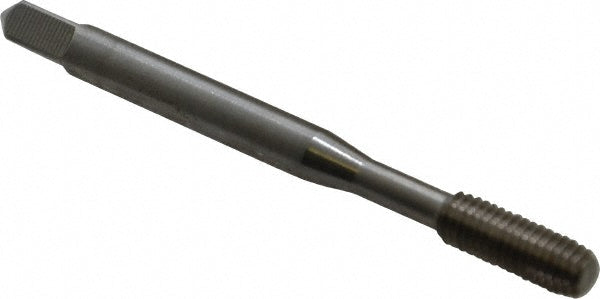

#10-32 UNF High-Speed Steel Tap - Balax 12186-010
MFR# 12186-010Series BXB
$21.06List $27.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-32
Description
The Balax 12186-010 is a #10-32 UNF High-Speed Steel tap.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in2-3/8
Shank diameter0.1940
Square size0.1520
Tapping depth0.8750
Thread directionRight Hand
Thread length0.6000
Thread limitH6
Thread size in#10-32
Thread standardUNF
