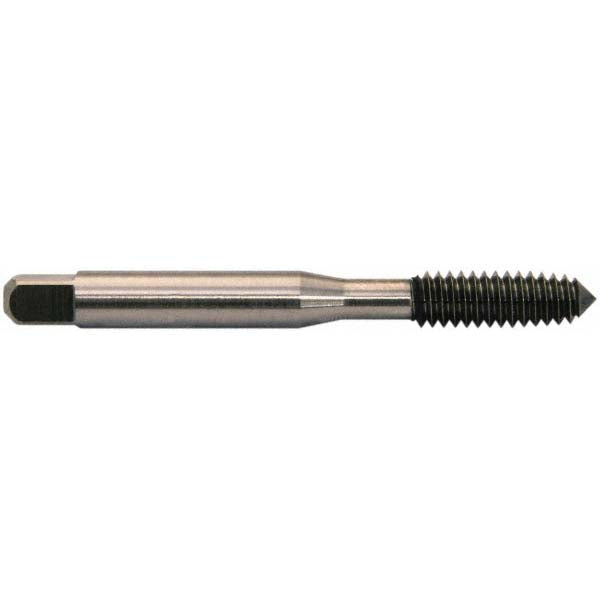

#12-24 UNC High-Speed Steel Tap - Balax 12426-000
MFR# 12426-000Series BXP
$21.99List $28.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#12-24
Description
The Balax 12426-000 is a #12-24 UNC High-Speed Steel tap.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Chamfered threads4P
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in2-3/8
Shank diameter0.2200
Square size0.1650
Tapping depth0.9375
Thread directionRight Hand
Thread length0.6200
Thread limitH6
Thread size in#12-24
Thread standardUNC
