Balax

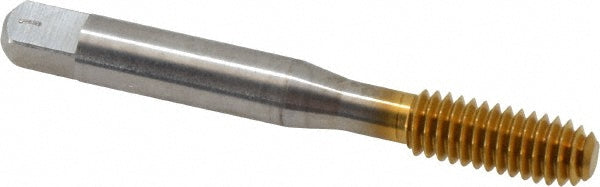

5/16-18 UNC High-Speed Steel Tap, TiN - Balax 13084-01T
MFR# 13084-01TSeries BXB
$32.63List $41.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-18
CoatingTiN
Description
The Balax 13084-01T is a 5/16-18 UNC High-Speed Steel tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Coating finishTiN
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in2-23/32
Shank diameter0.3180
Square size0.2380
Tapping depth1.1250
Thread directionRight Hand
Thread length0.8800
Thread limitH4
Thread size in5/16-18
Thread standardUNC
