Balax

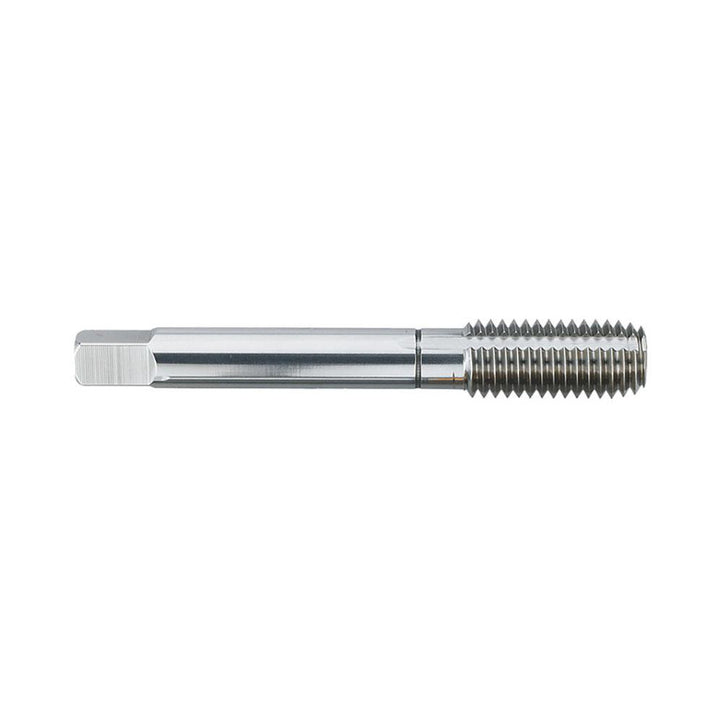

7/16-20 UNF High-Speed Steel Tap - Balax 13947-000
MFR# 13947-000Series BXP
$45.81List $58.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size7/16-20
Description
The Balax 13947-000 is a 7/16-20 UNF High-Speed Steel tap.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Chamfered threads4P
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in3-5/32
Shank diameter0.3230
Square size0.2420
Thread directionRight Hand
Thread length0.9500
Thread limitH7
Thread size in7/16-20
Thread standardUNF
