Balax
1/2-13 UNC Powdered Metal High-Speed Steel Tap, Super Titanium Nitride - Balax 14082-90U
MFR# 14082-90USeries BXSTAINLESS
$75.36List $96.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/2-13
CoatingSuper Titanium Nitride
Description

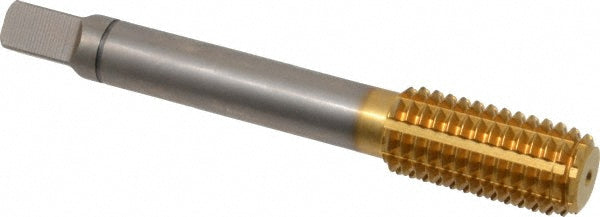

The Balax 14082-90U is a 1/2-13 UNC Powdered Metal High-Speed Steel tap with a Super Titanium Nitride finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit2B
Coating finishSuper Titanium Nitride
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationStainless Steel
Oil grooves1
Overall length in3-3/8
Shank diameter0.3670
Square size0.2750
Thread directionRight Hand
Thread length in1
Thread limitH9
Thread size in1/2-13
Thread standardUNC
