Balax
1/2-20 UNF Powdered Metal High-Speed Steel Tap, TiCN - Balax 14202-90C
MFR# 14202-90CSeries BXSTEEL
$81.09List $104.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/2-20
CoatingTiCN
Description

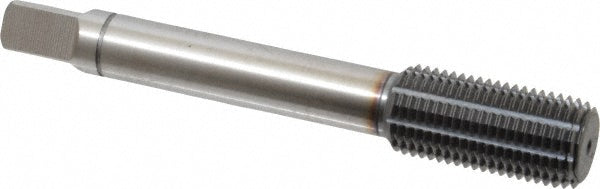

The Balax 14202-90C is a 1/2-20 UNF Powdered Metal High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationSteel
Oil grooves1
Overall length in3-3/8
Shank diameter0.3670
Square size0.2750
Thread directionRight Hand
Thread length in1
Thread limitH7
Thread size in1/2-20
Thread standardUNF
