9/16-18 UNF High-Speed Steel Tap - Balax 14426-000
MFR# 14426-000Series BXP
$80.42List $103.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size9/16-18
Description

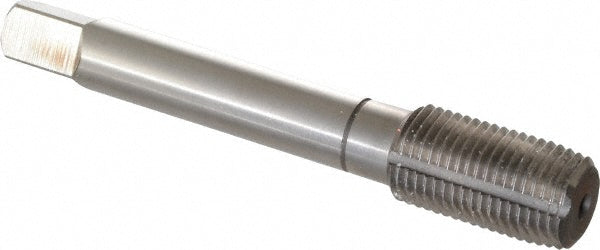

The Balax 14426-000 is a 9/16-18 UNF High-Speed Steel tap.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Chamfered threads4P
Class of fit3B
Coolant throughNo
MaterialHigh-Speed Steel
Oil grooves1
Overall length in3-19/32
Shank diameter0.4290
Square size0.3220
Thread directionRight Hand
Thread length in1
Thread limitH6
Thread size in9/16-18
Thread standardUNF
