Balax

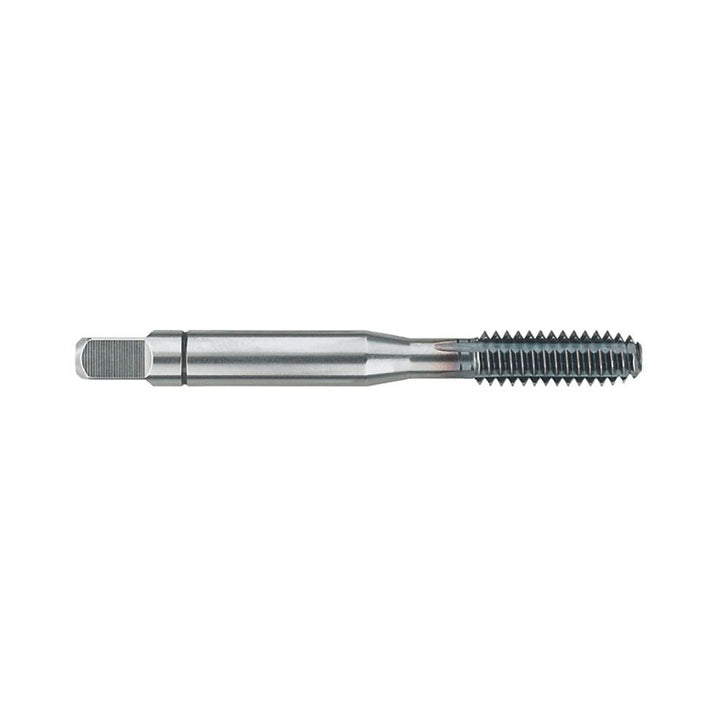

M4x0.7 Metric Powdered Metal High-Speed Steel Tap, TiCN - Balax 18077-81C
MFR# 18077-81CSeries BXSTEEL
$33.41List $42.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The Balax 18077-81C is a Metric Powdered Metal High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads2.5P
Class of fit6H
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationSteel
Oil grooves2
Overall length in2-1/8
Shank diameter0.1680
Square size0.1310
Tapping depth0.7500
Thread directionRight Hand
Thread length0.4700
Thread limitD7
Thread size (mm)M4x0.7
Thread standardMetric
