Balax

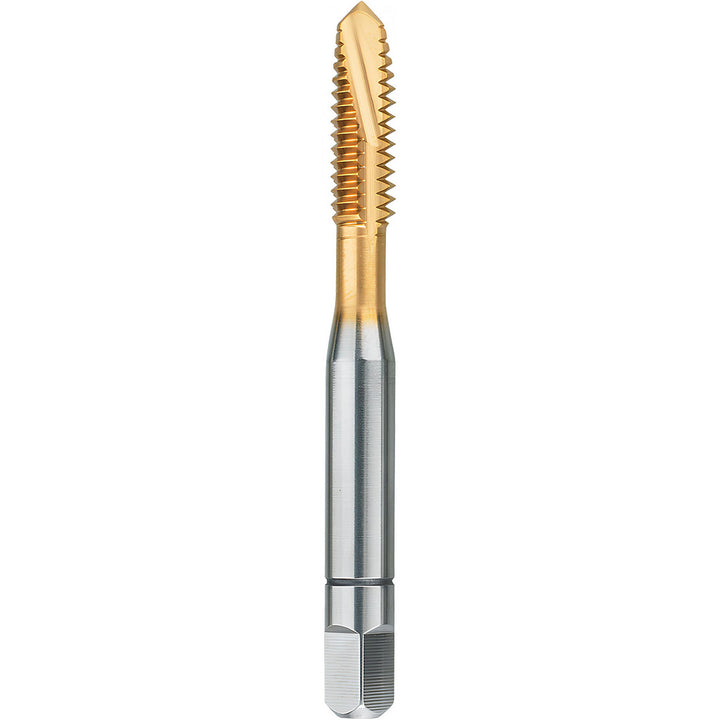

#3-48 UNC HSS Spiral Point Tap - Balax 30012-000
MFR# 30012-000Series BX100
$30.80List $39.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#3-48
Description
The Balax 30012-000 is a #3-48 UNC HSS Spiral Point tap. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationLow-Carbon Steel; 300 Stainless Steel; Wrought Aluminum Alloy; Die Cast Aluminum; Die Cast Zinc; Magnesium; Copper; Brass; Bronze Castings
Material gradeM42
Number of flutes2
Overall length in1-13/16
OversizeNo
Shank diameter0.1410
StyleSpiral Point
Threads per inch48
Thread directionRight Hand
Thread length in1/2
Thread limitH2
Thread pitch0.0208
Thread size in#3-48
Thread standardUNC
