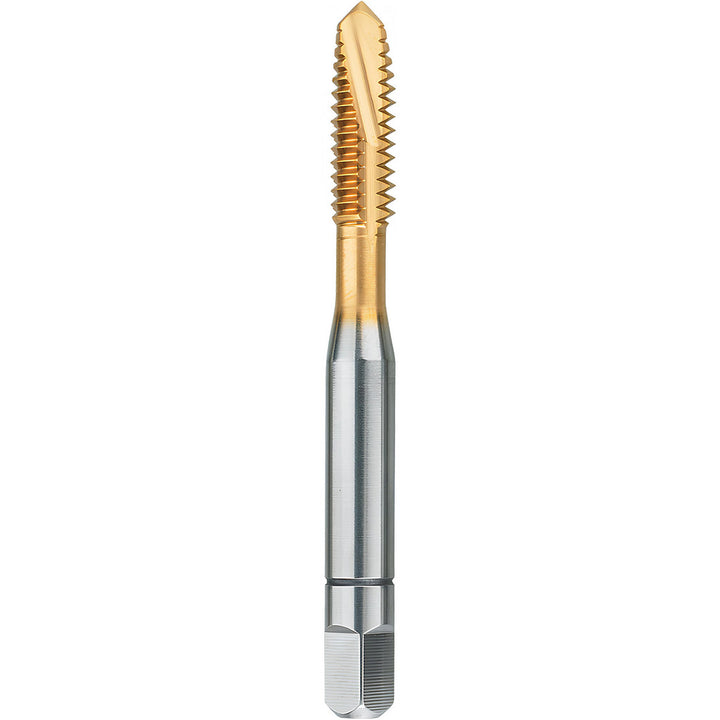

#10-24 UNC HSS Spiral Point Tap - Balax 30063-000
MFR# 30063-000Series BX100
$21.19List $27.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
Description
The Balax 30063-000 is a #10-24 UNC HSS Spiral Point tap. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationLow-Carbon Steel; 300 Stainless Steel; Wrought Aluminum Alloy; Die Cast Aluminum; Die Cast Zinc; Magnesium; Copper; Brass; Bronze Castings
Material gradeM42
Neck length in3/8
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
StyleSpiral Point
Threads per inch24
Thread directionRight Hand
Thread length in1/2
Thread limitH3
Thread pitch0.0417
Thread size in#10-24
Thread standardUNC
