1/4-28 UNF HSS Spiral Point Tap - Balax 30094-000
MFR# 30094-000Series BX100
$22.05List $28.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
Description

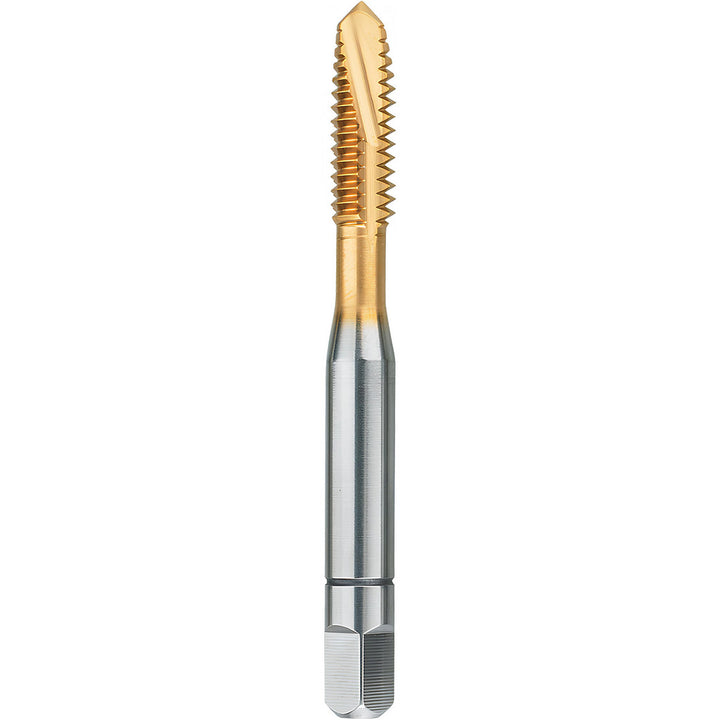

The Balax 30094-000 is a 1/4-28 UNF HSS Spiral Point tap. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationLow-Carbon Steel; 300 Stainless Steel; Wrought Aluminum Alloy; Die Cast Aluminum; Die Cast Zinc; Magnesium; Copper; Brass; Bronze Castings
Material gradeM42
Neck length in3/8
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
StyleSpiral Point
Threads per inch28
Thread directionRight Hand
Thread length in5/8
Thread limitH4
Thread pitch0.0357
Thread size in1/4-28
Thread standardUNF
