Balax

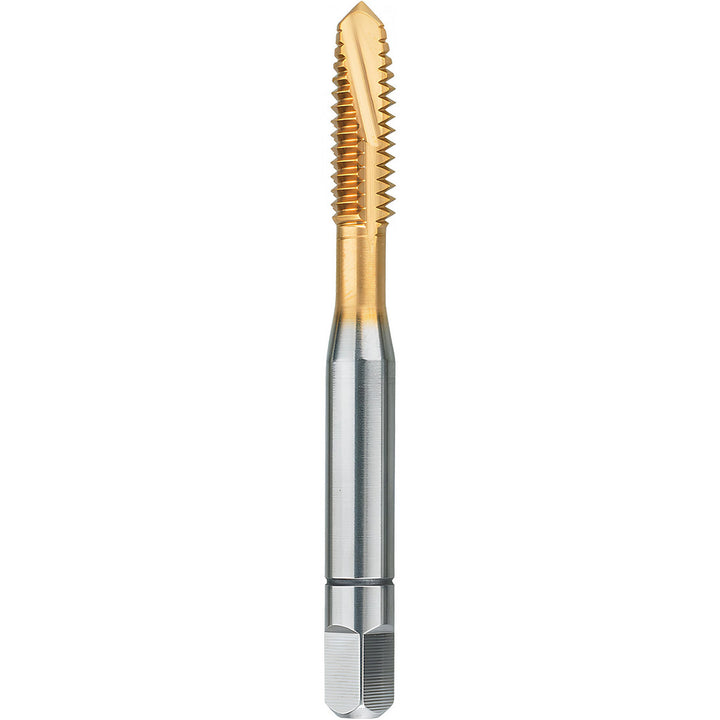

7/16-20 UNF HSS Spiral Point Tap - Balax 30153-000
MFR# 30153-000Series BX100
$53.44List $68.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-20
Description
The Balax 30153-000 is a 7/16-20 UNF HSS Spiral Point tap. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationLow-Carbon Steel; 300 Stainless Steel; Wrought Aluminum Alloy; Die Cast Aluminum; Die Cast Zinc; Magnesium; Copper; Brass; Bronze Castings
Material gradeM42
Number of flutes3
Overall length in3-5/32
OversizeNo
Shank diameter0.3230
StyleSpiral Point
Threads per inch20
Thread directionRight Hand
Thread length in7/8
Thread limitH3
Thread pitch0.05
Thread size in7/16-20
Thread standardUNF
