Balax

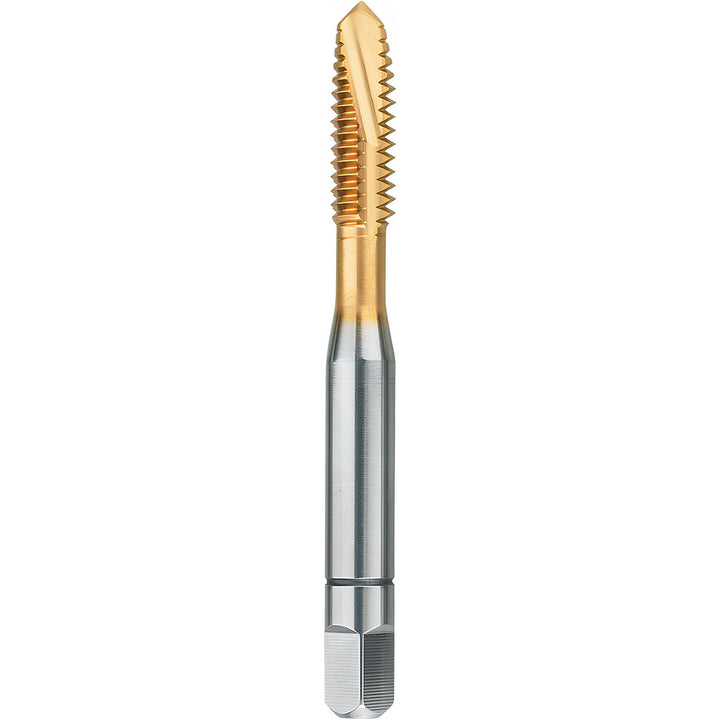

5/8-18 UNF HSS Spiral Point Tap - Balax 30195-000
MFR# 30195-000Series BX100
$93.58List $120.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-18
Description
The Balax 30195-000 is a 5/8-18 UNF HSS Spiral Point tap. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationLow-Carbon Steel; 300 Stainless Steel; Wrought Aluminum Alloy; Die Cast Aluminum; Die Cast Zinc; Magnesium; Copper; Brass; Bronze Castings
Material gradeM42
Number of flutes4
Overall length in3-13/16
OversizeNo
Shank diameter0.4800
StyleSpiral Point
Threads per inch18
Thread directionRight Hand
Thread length in1-3/32
Thread limitH5
Thread pitch0.0556
Thread size in5/8-18
Thread standardUNF
