Balax

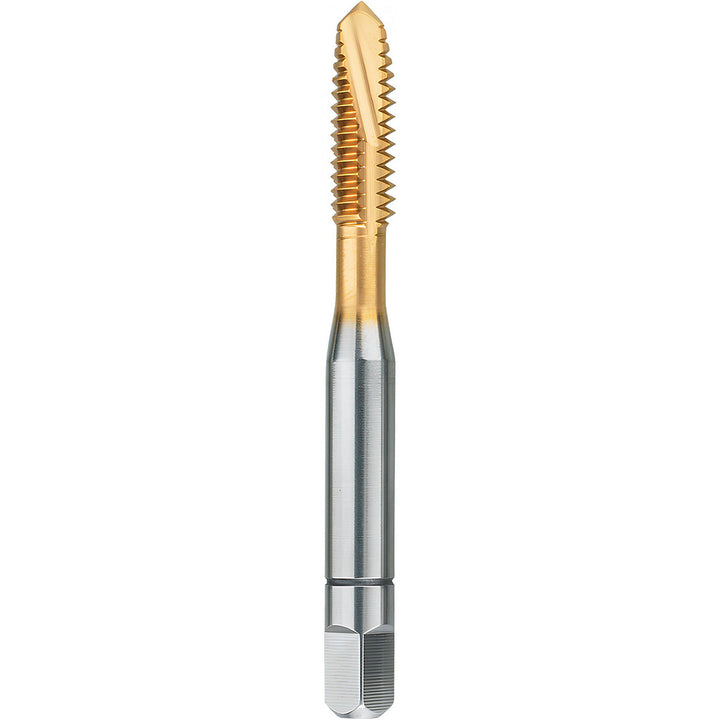

3/4-10 UNC HSS Spiral Point Tap - Balax 30203-000
MFR# 30203-000Series BX100
$133.57List $171.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
Description
The Balax 30203-000 is a 3/4-10 UNC HSS Spiral Point tap. 4 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationLow-Carbon Steel; 300 Stainless Steel; Wrought Aluminum Alloy; Die Cast Aluminum; Die Cast Zinc; Magnesium; Copper; Brass; Bronze Castings
Material gradeM42
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.5900
StyleSpiral Point
Threads per inch10
Thread directionRight Hand
Thread length in1-7/32
Thread limitH3
Thread pitch0.1
Thread size in3/4-10
Thread standardUNC
