Balax

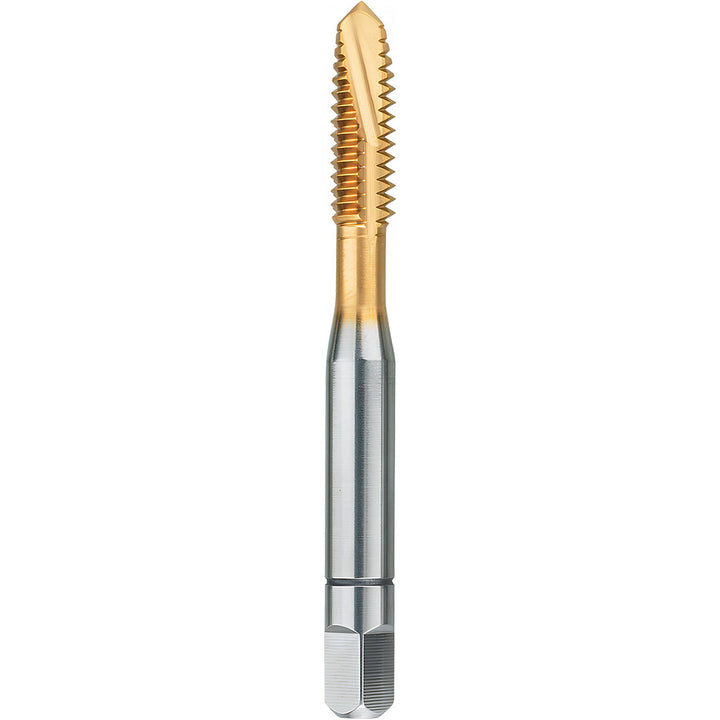

M5x0.8 Metric HSS Spiral Point Tap - Balax 31044-000
MFR# 31044-000Series BX100
$21.18List $27.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Balax 31044-000 is a Metric HSS Spiral Point tap. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit6H
Coolant throughNo
Interrupted threadNo
MaterialHSS
Material applicationLow-Carbon Steel; 300 Stainless Steel; Wrought Aluminum Alloy; Die Cast Aluminum; Die Cast Zinc; Magnesium; Copper; Brass; Bronze Castings
Material gradeM42
Neck length in3/8
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.1940
StyleSpiral Point
Threads per inch31.75
Thread directionRight Hand
Thread length in1/2
Thread limitD4
Thread pitch (mm)0.8
Thread size (mm)M5x0.8
Thread standardMetric
