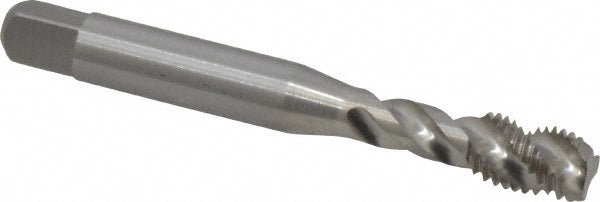

5/16-24 UNF Powdered Metal Tap - Balax 40113-010
MFR# 40113-010Series BX200
$37.75List $48.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
Description
The Balax 40113-010 is a 5/16-24 UNF Powdered Metal tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Brass; Bronze; Carbon Steel; Copper; Magnesium; Stainless Steel; Wrought Aluminum Alloy; Zinc
Material gradeM42
Neck length in1-1/8
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.3180
Square size0.2380
Threads per inch24
Thread directionRight Hand
Thread length0.9300
Thread limitH3
Thread size in5/16-24
Thread standardUNF
