Balax
7/16-14 UNC Powdered Metal Tap - Balax 40145-000
MFR# 40145-000Series BX200
$65.54List $84.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-14
Description

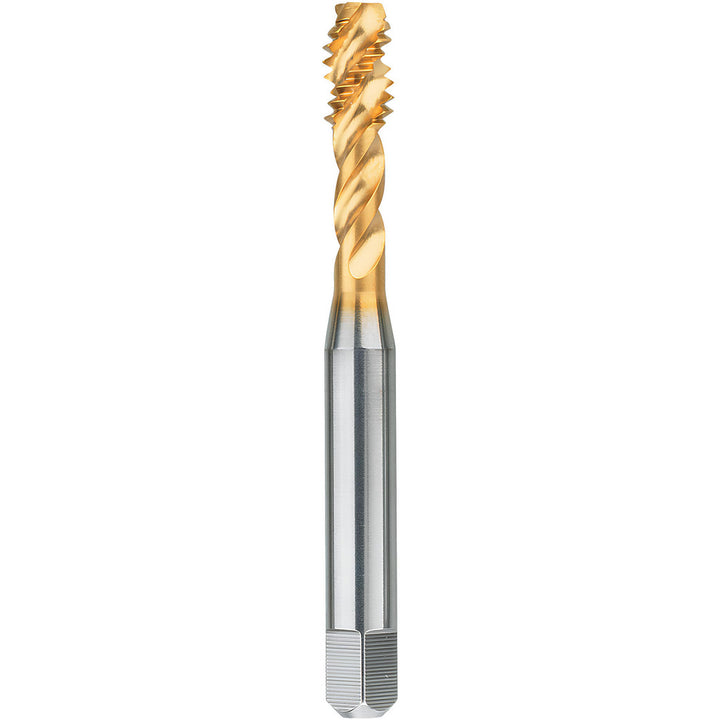

The Balax 40145-000 is a 7/16-14 UNC Powdered Metal tap. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Brass; Bronze; Carbon Steel; Copper; Magnesium; Stainless Steel; Wrought Aluminum Alloy; Zinc
Material gradeM42
Number of flutes3
Overall length in3-5/32
OversizeNo
Shank diameter0.3230
Square size0.2420
Thread directionRight Hand
Thread length0.9500
Thread limitH5
Thread size in7/16-14
Thread standardUNC
