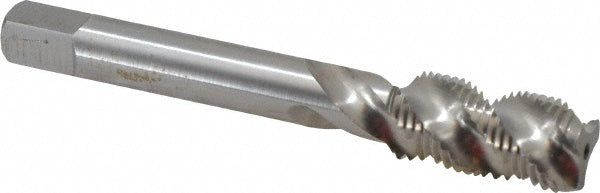

1/2-20 UNF Powdered Metal Tap - Balax 40173-000
MFR# 40173-000Series BX200
$79.79List $102.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
Description
The Balax 40173-000 is a 1/2-20 UNF Powdered Metal tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Brass; Bronze; Carbon Steel; Copper; Magnesium; Stainless Steel; Wrought Aluminum Alloy; Zinc
Material gradeM42
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.3670
Square size0.2750
Threads per inch20
Thread directionRight Hand
Thread limitH3
Thread size in1/2-20
Thread standardUNF
