Bison

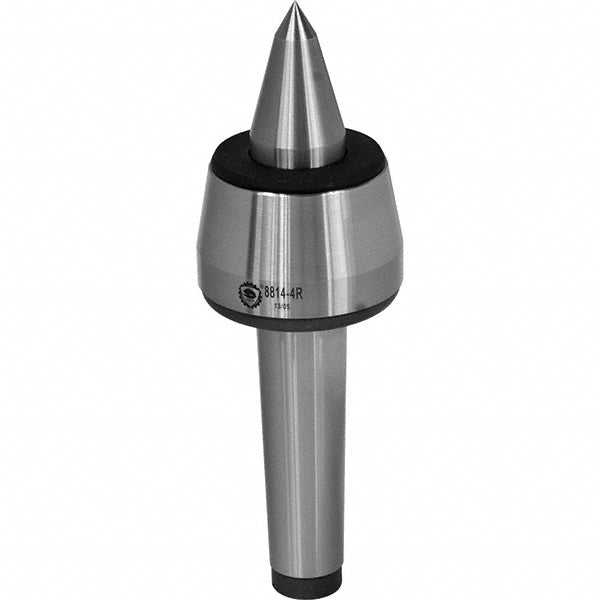

Lathe Center - Bison 7-562-004
MFR# 7-562-004
$258.11List $324.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Bison 7-562-004 is a steel lathe center.
Specifications
Accuracy0.000300
Bearing typeTriple
Carbide tipped pointNo
Head diameter (mm)42.00
Included angle60
MaterialSteel
Maximum rpm6300
Maximum workpiece weight kg700.00
Maximum workpiece weight lb1540.00
Point diameter (mm)20.00
Point length (mm)38.00
Point styleExtended
Point to gauge line (mm)88.50
Radial load1540lb
Shank typeMorse Taper
Taper length4.0354
Taper sizeMT4
Thrust load dan800.00
Thrust load lb1798.00
Tip diameter in10
