Bison

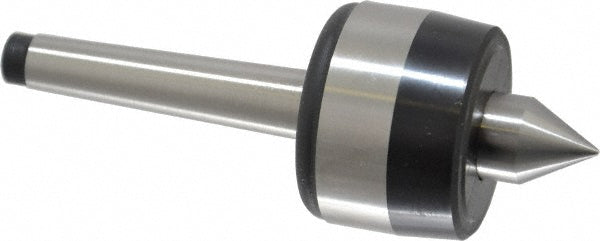

Lathe Center - Bison 7-565-101
MFR# 7-565-101
$144.20List $181.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Bison 7-565-101 is a steel lathe center.
Specifications
Accuracy0.000200
Bearing typeTriple
Carbide tipped pointNo
FeaturesHD Revolving Centers with 60 Point
Head diameter in1-1/2
Included angle60
Load capacity220.00lb
MaterialSteel
Maximum rpm5000
Maximum workpiece weight lb274.00
Overall length4.0700
Point diameter0.5900
Point length0.7000
Point styleStandard
Point to gauge line1.9700
Shank typeTaper
Taper sizeMT1
Tip length0.7000
Total indicated runout accuracy0.00020
