Bison

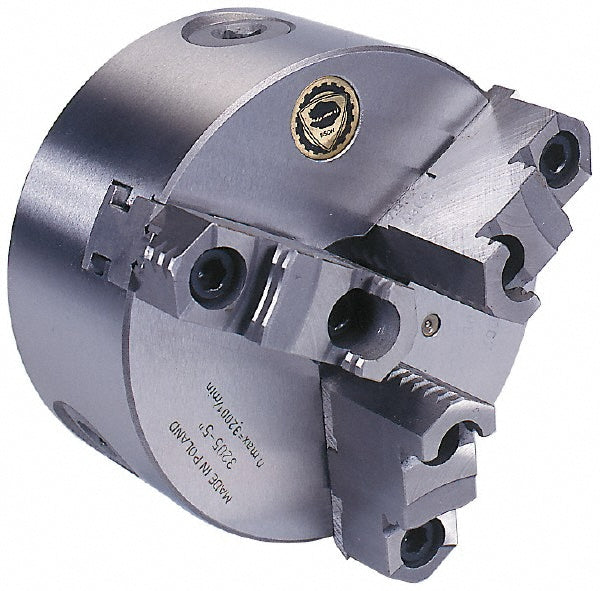

3-Jaw Lathe Chuck - Bison 7-801-0615
MFR# 7-801-0615
$1,132.84List $1,422.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Bison 7-801-0615 is a cast iron lathe chuck.
Specifications
AdjustableNo
Axial runout0.0008
Body length3.2087
Body materialCast Iron
Chuck diameter in6-1/4
Chuck typeSelf-Centering
Contents(2) Hex Keys; Chuck Wrench; Eye Bolts (Chuck Size 15-3/4 in & Larger); Set of Hard Master Jaws; Set of Mounting Bolts; Set of Soft Top Reversible Jaws
Maximum jaw capacity in5.7500
Maximum rpm3000
Minimum jaw capacity in0.1180
Number of jaws3
Radial runout0.0012
Reversible jawsReversible
Through hole diameter1.6535
