Bison

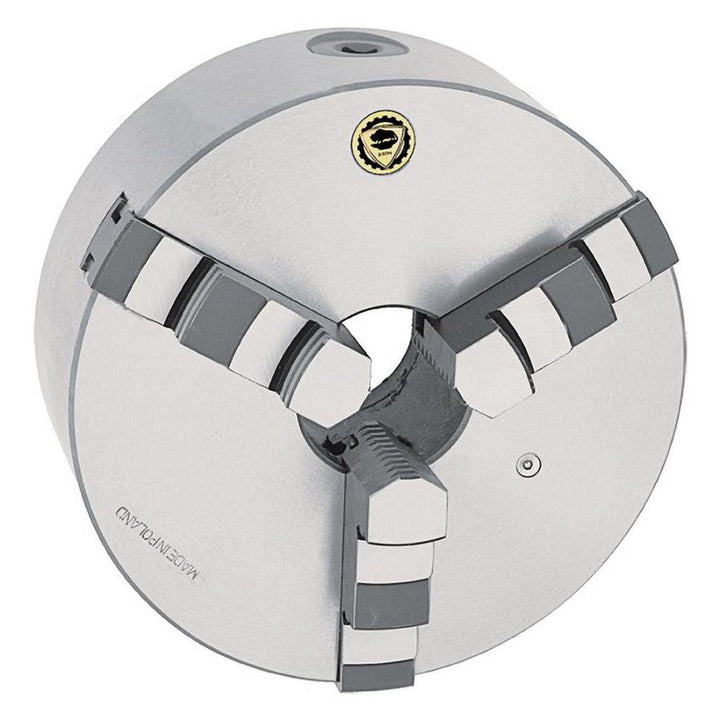

3-Jaw Lathe Chuck - Bison 7-810-1200
MFR# 7-810-1200
$1,817.16List $2,281.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Bison 7-810-1200 is a cast iron lathe chuck.
Specifications
AdjustableNo
Axial runout0.0012
Body length3.7010
Body materialCast Iron
Chuck diameter in12-1/2
Chuck typeSelf-Centering
Contents(2) Hex Keys; Chuck Wrench; Eye Bolts (Chuck Size 15-3/4 in & Larger); Set of Hard Solid External Jaws; Set of Hard Solid Internal Jaws; Set of Mounting Bolts
Jaw typeSolid
MaterialCast Iron
Maximum jaw capacity in11.7700
Maximum rpm1500
Minimum jaw capacity in0.3940
Mount typePlain Back
Number of jaws3
Radial runout0.0020
Reversible jawsNon-Reversible
Through hole diameter4.0551
