Bison

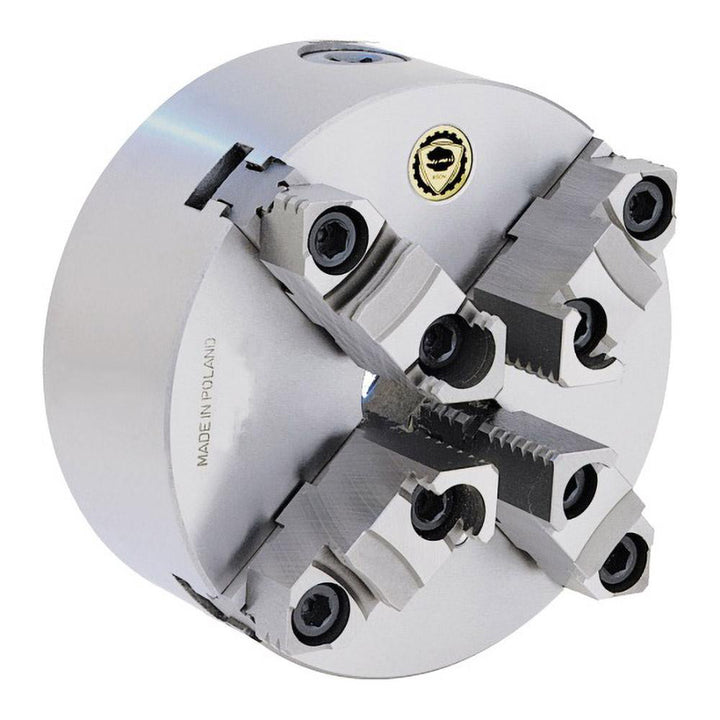

4-Jaw Lathe Chuck - Bison 7-840-0500
MFR# 7-840-0500
$1,110.53List $1,394.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Bison 7-840-0500 is a cast iron lathe chuck.
Specifications
AdjustableNo
Axial runout0.0012
Body length2.2050
Body materialCast Iron
Chuck diameter in5
Chuck typeSelf-Centering
Contents(2) Hex Keys; Chuck Wrench; Eye Bolts (Chuck Size 15-3/4 in & Larger); Semi-Steel Body; Set of Hard Master Jaws; Set of Hard Top Reversible Jaws; Set of Mounting Bolts
Jaw typeMaster; Top
MaterialCast Iron
Maximum jaw capacity in4.6500
Maximum rpm3200
Minimum jaw capacity in0.1180
Mount typePlain Back
Number of jaws4
Radial runout0.0015
Reversible jawsReversible
Through hole diameter1.2598
