Bison

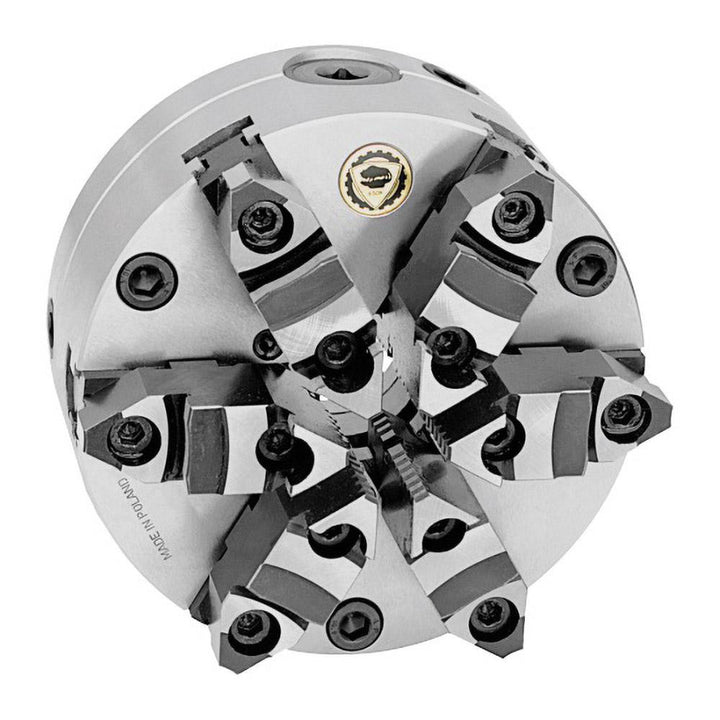

6-Jaw Lathe Chuck - Bison 7-868-0800
MFR# 7-868-0800
$2,628.15List $3,299.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Bison 7-868-0800 is a steel lathe chuck.
Specifications
AdjustableYes
Body length3.0710
Body materialForged Steel
Chuck diameter in8
Chuck typeSelf-Centering
Contents(2) 5 in Eye Bolts; (2) Hex Keys; 6 in Eye Bolt; Chuck Wrench; Set of Fine Adjustment Screws; Set of Hard Master Jaws; Set of Hard Top Reversible Jaws; Set of Mounting Bolts
Jaw typeMaster; Top
MaterialSteel
Maximum jaw capacity in7.8700
Maximum rpm2200
Minimum jaw capacity in0.3100
Mount typePlain Back
Number of jaws6
Reversible jawsReversible
Through hole diameter2.1650
Tir repeatability0.0006
