Bison

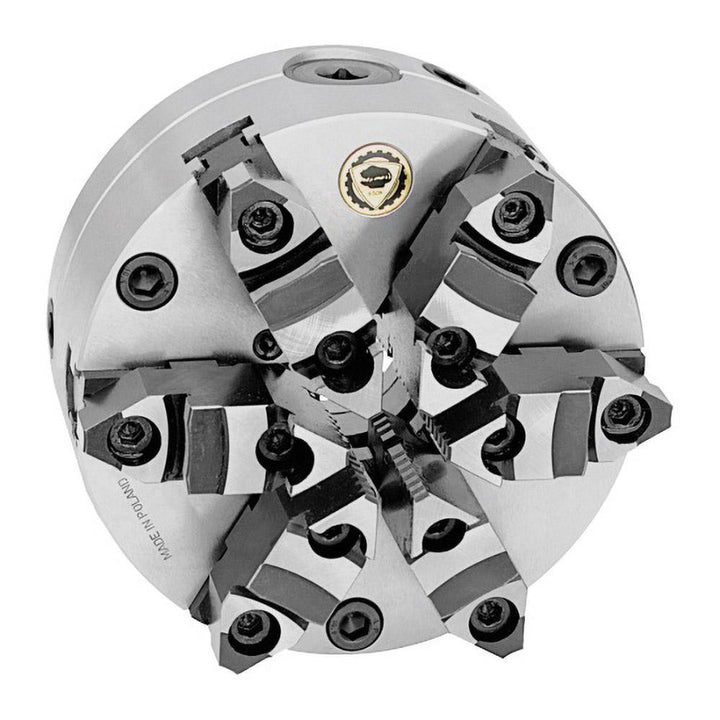

6-Jaw Lathe Chuck - Bison 7-868-1000
MFR# 7-868-1000
$2,758.00List $3,462.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Bison 7-868-1000 is a steel lathe chuck.
Specifications
AdjustableYes
Body length3.5040
Body materialForged Steel
Chuck diameter in10
Chuck typeSelf-Centering
Contents(2) 5 in Eye Bolts; (2) Hex Keys; 6 in Eye Bolt; Chuck Wrench; Set of Fine Adjustment Screws; Set of Hard Master Jaws; Set of Hard Top Reversible Jaws; Set of Mounting Bolts
Jaw typeMaster; Top
MaterialSteel
Maximum jaw capacity in10.1000
Maximum rpm1900
Minimum jaw capacity in0.4700
Mount typePlain Back
Number of jaws6
Reversible jawsReversible
Through hole diameter2.9920
Tir repeatability0.0006
