Carmex

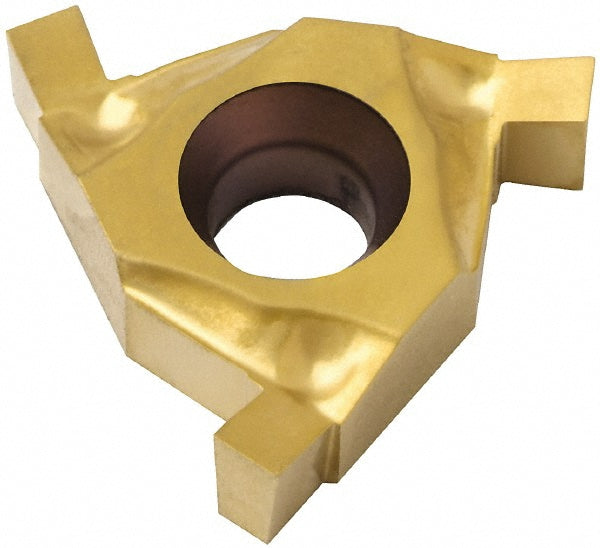

3/8" IC Solid Carbide Insert, Grade BXC, TiN - Carmex 16IR/EL0.067BXC
MFR# 16IR/EL0.067BXCSeries 16
$16.31List $20.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeBXC
MaterialSolid Carbide
CoatingTiN
Description
The Carmex 16IR/EL0.067BXC is a solid carbide indexable insert, grade BXC, TiN coated. Suited for cast iron, steel.
Specifications
Coating finishTiN
Coating processPVD
Corner radius0.0040
Cutting width0.0670
External relief angle10
Full radiusNo
Hole diameter0.1570
Inscribed circle in3/8
Insert handLeft Hand; Right Hand
Insert materialSolid Carbide
Insert size0.067
Insert size code0067
Insert style16IR/EL
Internal relief angle15
Manufacturer gradeBXC
Material gradeC6
Maximum depth of cut0.0790
Maximum depth of cut range0.0750 to 0.1000
Multi use toolNo
Overall length (mm)16.00
Primary workpiece materialCast Iron; Steel
RakePositive
Rake angle15.00
StandardsISO
