Carmex

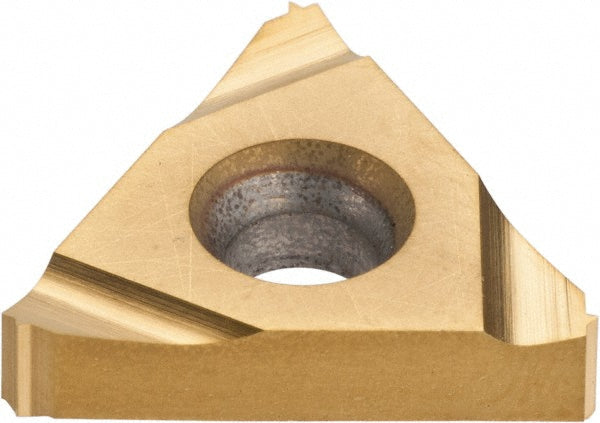

3/8" IC Solid Carbide Insert, Grade MXC, Coated - Carmex 16IR0.5ISOMXC
MFR# 16IR0.5ISOMXC
$21.84List $28.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeMXC
MaterialSolid Carbide
CoatingCoated
Description
The Carmex 16IR0.5ISOMXC is a solid carbide indexable insert, grade MXC, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16IR
Iso 134852016
Iso 140012015; ISO 45001
Manufacturer gradeMXC
Material gradeMicrograin
Pitch (mm)0.50
Primary workpiece materialUniversal
StandardsCE
Thickness0.1460
Thread standardISO
Thread typeInternal
