Carmex

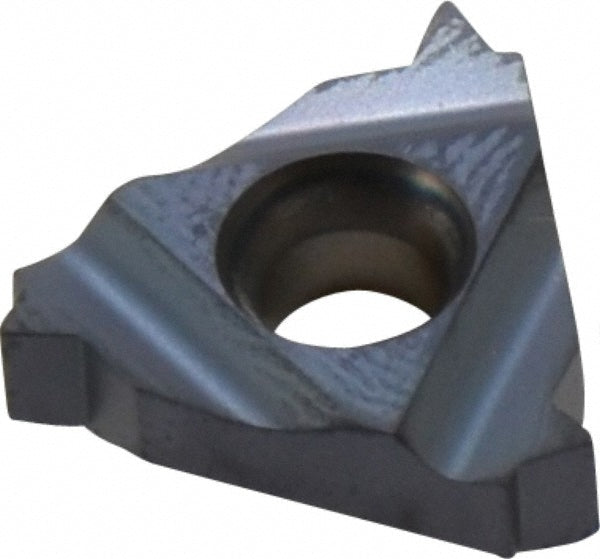

3/8" IC Solid Carbide Insert, Grade BMA, Coated - Carmex 16IR10UNBMA
MFR# 16IR10UNBMA
$23.92List $30.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeBMA
MaterialSolid Carbide
CoatingCoated
Description
The Carmex 16IR10UNBMA is a solid carbide indexable insert, grade BMA, Coated coated. Suited for universal.
Specifications
Coating finishCoated
Coating processPVD
Corner radius0.0060
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style16IR
Iso 134852016
Iso 140012015; ISO 45001
Manufacturer gradeBMA
Material gradeSubmicron
Primary workpiece materialUniversal
StandardsCE
Thickness0.1460
Threads per inch10
Thread standardUN
Thread typeInternal
