Carmex

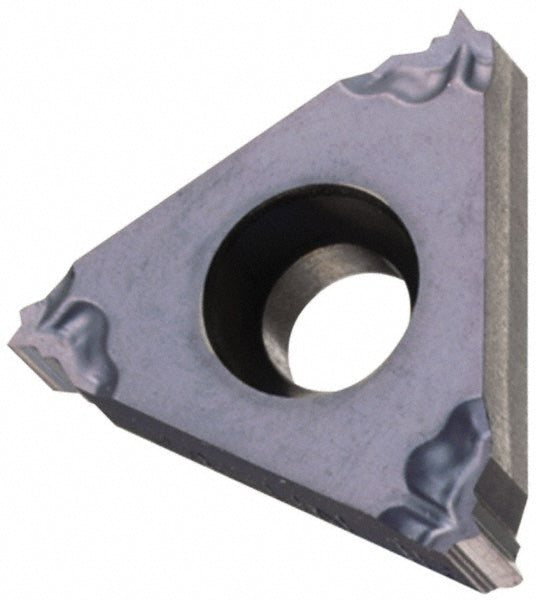

16 IR B 14 NPT Carbide Insert, Grade BMA, TiAlN - Carmex 16IRB14NPTBMA
MFR# 16IRB14NPTBMAISO/ANSI# 16 IR B 14 NPTCat# 16 IR B 14 NPTSeries 16IR
$23.12List $29.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeBMA
MaterialCarbide
CoatingTiAlN
Description
The Carmex 16IRB14NPTBMA is a 16 IR B 14 NPT carbide indexable insert, grade BMA, TiAlN coated. Suited for stainless steel.
Specifications
ChipbreakerB
Coating finishTiAlN
Coating processPVD
Corner radius0.0030
Cutting edge to theoretical edge length0.0400
Face of insert to tip centerline0.0500
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialCarbide
Insert size code16
Insert style16IR
Iso code16 IR B 14 NPT
Manufacturers catalog number16 IR B 14 NPT
Manufacturer gradeBMA
Number of teeth per side1
Primary workpiece materialStainless Steel
Thickness0.1430
Threads per inch14
Thread standardNPT
Thread typeInternal
