Carmex

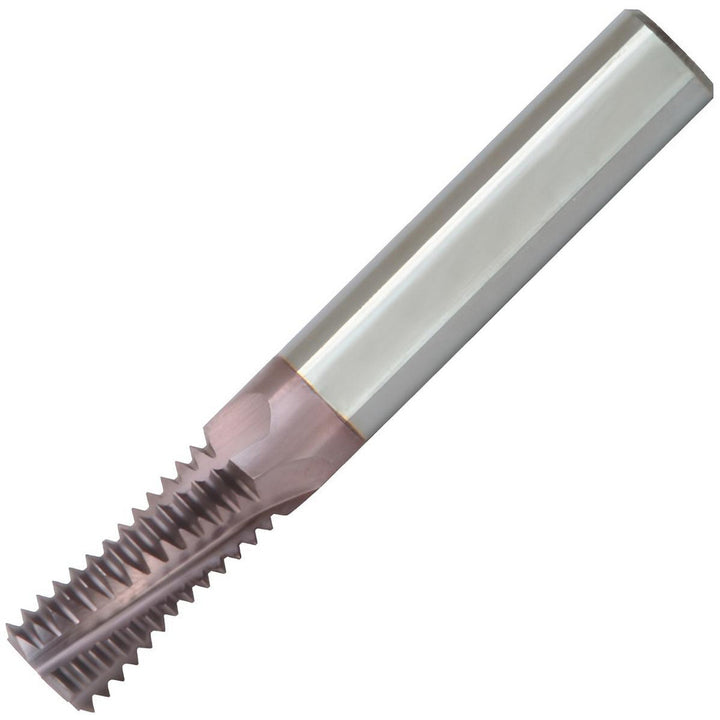

Helical Flute Thread Mills - Carmex MT0500C1410UN
MFR# MT0500C1410UN
$329.82List $423.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/4-10
CoatingTiAlN
Description
The Carmex MT0500C1410UN helical flute thread mills.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting diameter0.4720
Flute directionRight Hand
Length of cut1.3500
MaterialSolid Carbide
Material gradeMT7
Minimum nominal diameter in0.7500
Number of flutes3
Overall length3.5000
Shank length1.6000
Teeth per inch10
Thread size in3/4-10
Thread standardUNC
Thread typeInternal
