Carmex

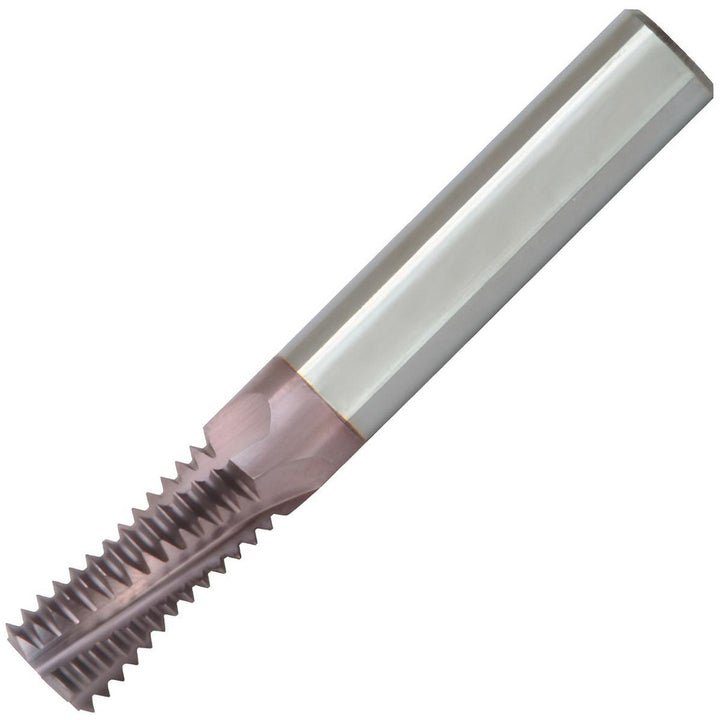

Helical Flute Thread Mills - Carmex MT0500E1120UN
MFR# MT0500E1120UN
$286.81List $367.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size3/4-20; 1-20
CoatingTiAlN
Description
The Carmex MT0500E1120UN helical flute thread mills.
Specifications
Coating finishTiAlN
Coolant throughNo
Cutting diameter0.4720
Flute directionRight Hand
Length of cut1.0800
MaterialSolid Carbide
Material gradeMT7
Minimum nominal diameter in0.7500
Number of flutes5
Overall length3.5000
Shank length1.9000
Teeth per inch20
Thread size in3/4-20; 1-20
Thread standardUNEF
Thread typeInternal
