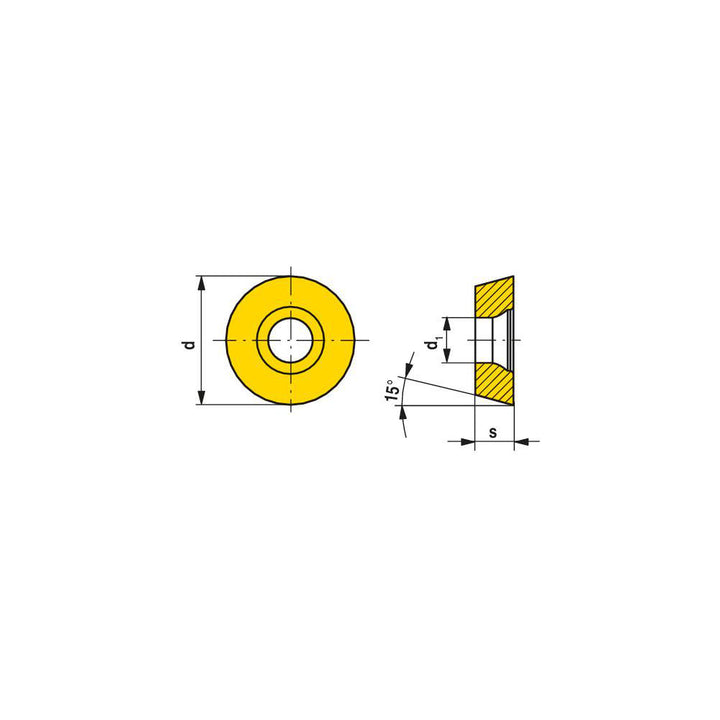

RDHX 0802M4EN-M31 CTC5240 Solid Carbide Insert, Grade CTC5240, TiN - Ceratizit 5048150100
MFR# 5048150100ISO/ANSI# RDHX 0802M4EN-M31 CTC5240Cat# RDHX 0802M4EN-M31 CTC5240Series RDHX
$14.98List $19.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeCTC5240
MaterialSolid Carbide
CoatingTiN
Description
The Ceratizit 5048150100 is a RDHX 0802M4EN-M31 CTC5240 solid carbide indexable insert, grade CTC5240, TiN coated. Suited for superalloys & titanium.
Specifications
Ansi codeRDHX 0802M4EN-M31 CTC5240
Chip breakerM31
Coating finishTiN
Coating processCVD
Corner radius0.1575
Cutter series compatibility251
Cutting edge effective length0.1575
Cutting edge styleHoned
Hole diameter0.1102
Included angle degree360
Inscribed circle0.3150
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size08
Insert size code0802
Insert styleRDHX
Iso codeRDHX 0802M4EN-M31 CTC5240
Length0.1575
Length range0.0000 to 0.3200
Manufacturers catalog numberRDHX 0802M4EN-M31 CTC5240
Manufacturer gradeCTC5240
Material applicationSuperalloys & Titanium
Material gradeS40
Maximum depth of cut0.1575
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle15.00
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/32
Thickness range0.0000 to 0.1000
Width0.3150
