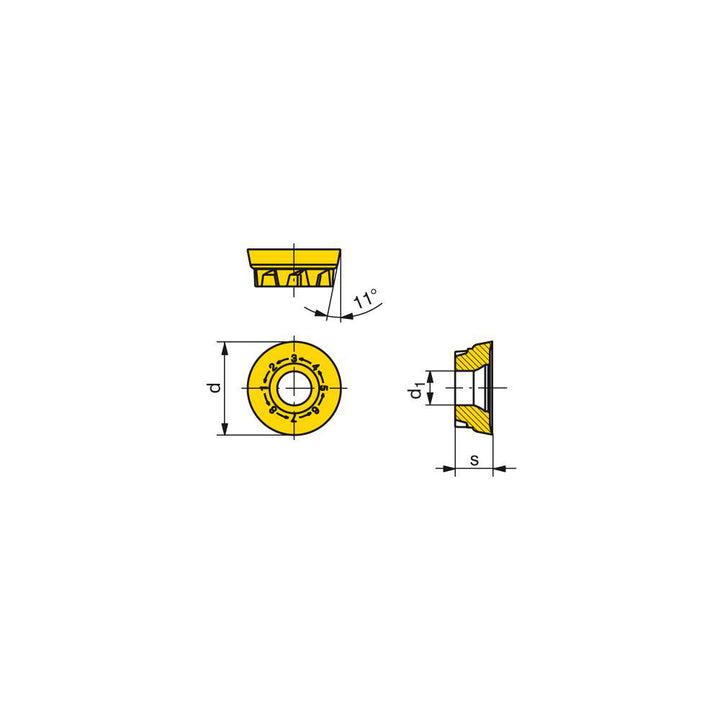

RPHX 10T3M4EN-M31 CTC5240 Solid Carbide Insert, Grade CTC5240, TiN - Ceratizit 50493550
MFR# 50493550ISO/ANSI# RPHX 10T3M4EN-M31 CTC5240Cat# RPHX 10T3M4EN-M31 CTC5240Series RPHX
$26.36List $33.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeCTC5240
MaterialSolid Carbide
CoatingTiN
Description
The Ceratizit 50493550 is a RPHX 10T3M4EN-M31 CTC5240 solid carbide indexable insert, grade CTC5240, TiN coated. Suited for superalloys & titanium.
Specifications
Ansi codeRPHX 10T3M4EN-M31 CTC5240
Chip breakerM31
Coating finishTiN
Coating processCVD
Corner radius0.1969
Cutter series compatibility251
Cutting edge effective length0.1968
Cutting edge styleHoned
Hole diameter0.1339
Included angle degree360
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size10
Insert size code10T3
Insert styleRPHX
Iso codeRPHX 10T3M4EN-M31 CTC5240
Length0.1968
Length range0.0000 to 0.3200
Manufacturers catalog numberRPHX 10T3M4EN-M31 CTC5240
Manufacturer gradeCTC5240
Material applicationSuperalloys & Titanium
Material gradeS40
Maximum depth of cut0.1969
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Relief angle11.00
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3937
